Local DMX Menu

The Local DMX Menu is new in 4.8 and replaces the previous USB2DMX Menu for assigning universes to local attached DMX ports.

This Menu was updated in 4.32.1303

This includes the following devices:

  • NX4 (4 Local Outputs)
  • NX2 (4 Local Outputs)
  • NX1 (4 Local Outputs)
  • NX-Wing (4 Local Outputs)
  • NX - W (4 Local Outputs
  • NX-P (4 Local Outputs)
  • NX-Touch (1 Local Output)
  • NX-DMX (2 Local Outputs)
  • For a complete list of supported local DMX devices, including legacy devices, please see our license matrix



From this menu, you can:

  • Name Devices
  • Assign the DMX port as an Input or Output
  • Assign the DMX Universe
  • Assign Wing ID's
  • Adjust DMX Timings



Control Description

Device Selection

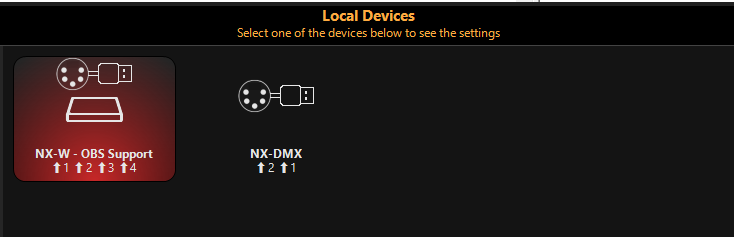

Selects the device to change the DMX setting on

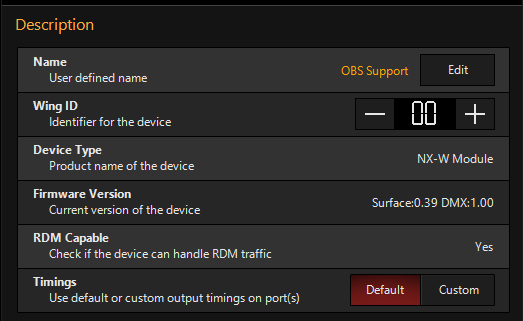

Selected Device Settings / Information



Name - User-defined name of the device



Wing ID - sets the wing ID of the playback section of the device (for more information, see Wing ID's)



Device Type - Hardware Model



Firmware Version - Internal Firmware Version



RDM Status - Indicates if the device is capable of RDM on the local DMX ports.



Timings - DMX timing selection

  • Default - Uses Default DMX timings set by Onyx
  • Custom - Allows for Custom DMX timings to be set per port.



*** Obsidian Control does not recommend changing the DMX timings; improper settings may cause DMX communication issues or even damage to connected devices***



Port Configuration



Direction - Sets the DMX port direction

Universe - sets the Universe of the port

Custom Timings



*** Obsidian Control does not recommend changing the DMX timings; improper settings may cause DMX communication issues or even damage to connected devices***
